# Sail Area Calculator: Complete Guide to Performance and Ratios
Sail area is the aerodynamic engine of any sailing vessel. It determines how much wind energy the boat can capture and, combined with its displacement, defines its nautical character: whether it will be a slow cruiser or a twitchy racing machine. Calculating this value correctly is the first step to understanding the behaviour of any sailboat.
Sailing involves a constant dance between the force of the wind on the sails and the resistance of the water on the hull. The Sail Area / Displacement ratio (SA/D) captures this relationship in a single number that allows boats of any length and displacement to be compared on equal terms.
# What is the SA/D Ratio used for?
The Sail Area / Displacement ratio is a diagnostic tool that allows you to predict boat behaviour before setting sail. A low ratio indicates a robust and safe but slow boat in light winds; a high ratio offers speed and a sense of flying but demands greater crew skill when the wind picks up. Neither is superior to the other: it all depends on the type of sailing intended.
# SA/D Ratio Reference Table
| Ratio | Boat Type | Behaviour at Sea |
|---|---|---|
| < 14 | Heavy Displacement / Cargo Vessel | Stable, slow, needs sustained wind |
| 14 - 16.5 | Offshore Passage Cruiser | Balanced, comfortable, good upwind |
| 16.5 - 20 | Standard Marina Cruiser | Lively in breeze, manageable, versatile |
| 20 - 25 | Performance Cruiser / Sport | Fast, demanding, exciting in light air |
| > 25 | Racer / Extreme Sport | Very fast, nervous, requires expert crew |

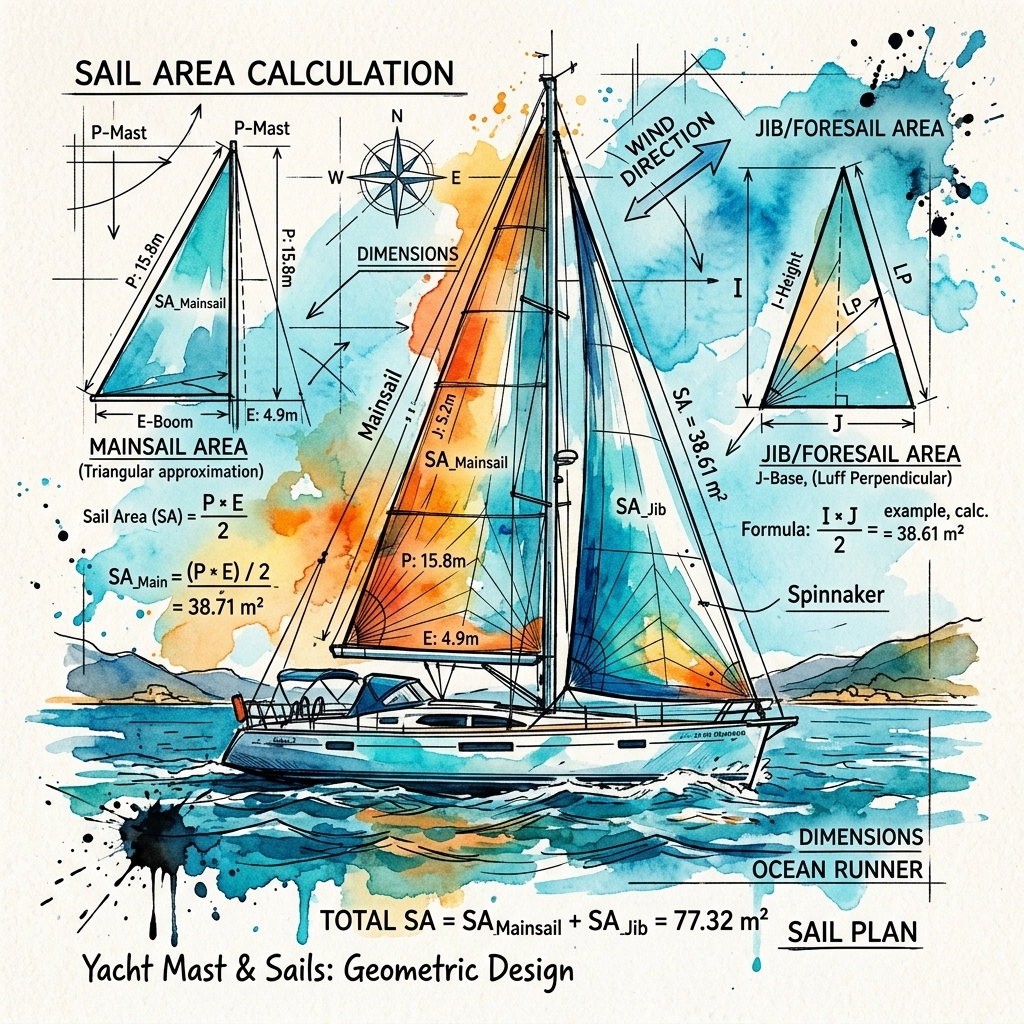

# Technical Glossary of Measurements (I, J, P, E)
- I (Foretriangle Height)
- Vertical distance from the deck to the point where the jib halyard attaches at the mast. Defines the height of the foretriangle.
- J (Foretriangle Base)
- Horizontal distance from the mast to the stem (bow of the boat). Defines the base of the foretriangle where headsails are furled or hanked.
- P (Mast Height)
- Distance from the deck to the mainsail halyard sheave at the top of the mast. Defines the height of the mainsail.
- E (Boom Length)
- Distance from the mast to the mainsail clew at the end of the boom. Defines the base of the mainsail.
# Nautical Exam Calculations (Yachtmaster)
Sail area calculation and the SA/D ratio form part of the syllabus for Yachtmaster and coastal skipper examinations. Understanding rig geometry and its relationship with displacement is essential for making safety decisions at sea: reefing in time, choosing the right genoa or estimating boat behaviour ahead of a squall.
Downwind Sails and Safety
For ocean or long-distance passage sailing, an SA/D ratio between 16 and 18 offers the best balance between speed and safety. Boats with ratios above 22 may need reefing in winds of only Force 4-5.# How Does Genoa Overlap Affect Performance?
The genoa is the largest headsail, whose clew is positioned behind the mast, "overlapping" the mainsail. The overlap percentage indicates how much longer the perpendicular to the luff (LP) is compared to the J distance. A 150% genoa has an LP equivalent to 150% of J, providing much greater sail area than a simple non-overlapping jib.
Dacron (Cruising)
Classic material for cruising sails. Robust and easy to maintain.
- High durability and UV resistance
- Low maintenance cost
- More weight and stretch under load
- Ideal for coastal and passage sailing
Laminates (Racing)
High-tech materials such as Kevlar, Spectra or Dyneema.
- Minimum stretch: maximum aerodynamic efficiency
- Much lighter than Dacron
- Higher cost and shorter service life
- Essential on boats with SA/D ratio > 22
# Physics of Sailing and Stability
Sail area generates a driving force but also a heeling moment that tends to capsize the boat. Stability is measured by the righting moment the boat can oppose to this heeling force. A high SA/D ratio in a boat with little ballast can be dangerous, while the same ratio in a boat with a deep heavy keel is perfectly manageable.
To calculate real available power, naval architects use the Displacement-Length Ratio (DLR) in combination with the SA/D. Both ratios together precisely describe whether a boat is a sea tug or a racing planer.
